34mm UAV Bungee Cord – Catapult Launch Test
Field-Tested Elastic Launch Solution for 80 kg Fixed-Wing UAV
This case study documents the successful application of a 34mm UAV bungee cord in a fixed-wing UAV catapult launch system.
The bungie cord was integrated into the customer’s launcher and evaluated under actual operating conditions. The project demonstrates how a heavy-duty bungee cord can function as an elastic energy component within a UAV launch system when cord size, launcher geometry and operating requirements are considered together.
| FIELD TESTED | |
| UAV Weight | 75-80kg |
| Bungee Cord | 34mm |
| Result | Successful |
Project Overview
34mm UAV Bungee Cord Launch Test
The objective of the project was to evaluate an elastic launch configuration for a 75kg – 80kg fixed-wing UAV.
Instead of selecting the bungee cord only according to diameter or breaking strength, the launch system was evaluated as a complete configuration. Relevant parameters included UAV weight, elastic cord length, launcher angle and the performance recorded during the field test.
Actual Test Data
| Test Parameter | Recorded Configuration |
|---|---|
| Application | Fixed-Wing UAV Catapult Launcher |
| UAV Weight | 75KG – 80KG |
| Bungee Cord Diameter | 34MM |
| Bungee Cord Length | 4METERS |
| Launcher Inclination | 20° |
| Recorded Speed | 59.40 m/s |
| Glide Distance | 65.80 m |
| Result | Successful Launch |
Test conclusion: The selected 34mm elastic launch configuration successfully operated within this specific fixed-wing UAV catapult system.
The data above represents one tested launcher configuration and should not be interpreted as a universal performance rating for all 34mm bungee cords or all 75-80kg UAVs.
Engineering Challenge
UAV Catapult Launching Requires More Than a Strong Cord
Selecting bungee cord for UAV launcher is not simply a matter of choosing the largest diameter or highest breaking strength.
A successful elastic launch system must consider how force is developed and transferred throughout the complete launch process.
Important variables include:
UAV takeoff weight
Required launch velocity
Available acceleration distance
Original bungee cord length
Available extension distance
Number of elastic cords
Launcher inclination
Pulley or carriage configuration
Mechanical friction
End connection design
Required launch repeatability
For this reason, bungee cord selection should be based on the complete launcher configuration, rather than on cord diameter alone.
Why a 34mm Bungee Cord?
Heavy-Duty Elastic Capacity
34mm bungee cord was selected as the elastic component for this launcher project because a larger elastic section can provide substantial force and energy storage while allowing the launcher designer to use a relatively compact cord arrangement.
High fatigue test
The 34mm product has undergone rigorous factory testing and market verification, and has passed over a thousand fatigue tests.
Use in harsh environments
The specially customized 34mm is capable of operating in harsh environments and can work without relying on electricity.
Reduced Configuration Complexity
In suitable systems, higher-output cords can reduce the need for a large number of smaller parallel elastic elements. For example 2pcs 34mm can be replaced 5pcs 18mm.
Custom Launcher Integration
Cord length, elastic characteristics and end connections can be adapted according to the physical layout of the launcher.
Even with the same 34mm diameter, the factory can offer various performance versions to suit different systems.
The correct configuration should always be verified against actual launcher requirements and test data.
Successful UAV Launch Result
Field Test Completed Successfully
The launcher completed the test successfully and transferred sufficient energy to the aircraft for the required launch sequence.
Two important performance values were recorded during the test:
| UAV Weight | 75kg – 80kg |
| Throwing distance | 65meters – 70meters |
This result provides practical application evidence for the use of a 34mm heavy-duty elastic cord in a fixed-wing UAV catapult launcher.
It is important to distinguish this field result from a laboratory material rating. The recorded performance was produced by the complete launcher system, not by cord diameter alone.

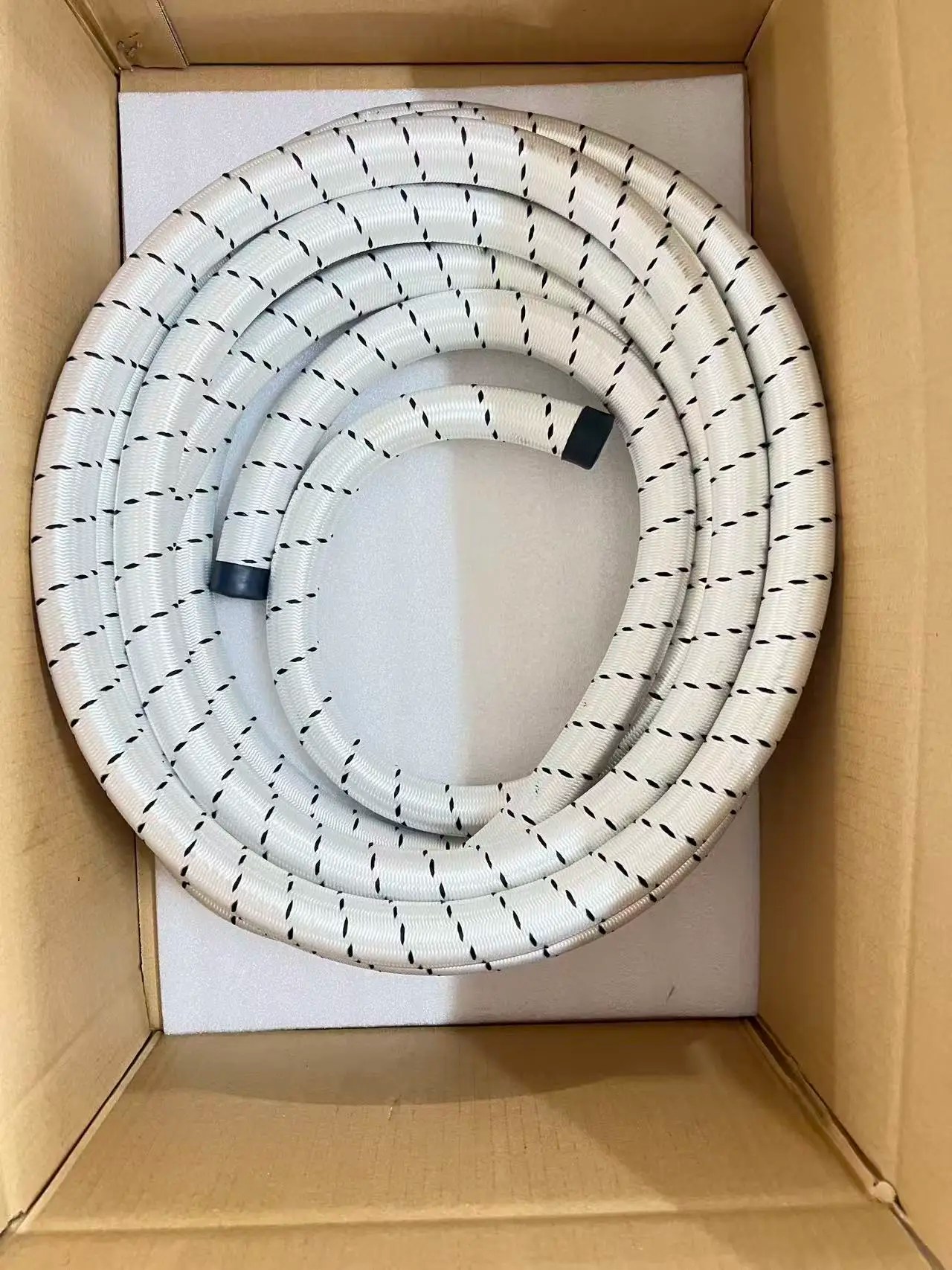

34mm Bungee Cord Construction
Polyester Jacket + Imported Latex Elastic Core
The 34mm UAV bungee cord uses a heavy-duty elastic construction designed to combine mechanical protection with high elastic recovery.
The outer polyester braid protects the internal elastic core and helps maintain the structure of the cord during repeated extension.
Key functions include:
- abrasion protection
- protection of the internal latex
- stable braided structure
- improved handling during installation
- protection at exposed launcher contact areas
Multiple elastic latex strands form the energy-storing core of the cord.
During extension, the latex core generates progressively increasing tensile force. When the launcher is released, the stored elastic energy is transferred through the launch mechanism.
The final force-extension behavior depends on:
- latex grade
- number of elastic strands
- cord construction
- original cord length
- working extension
Why Force-Extension Data Matters
Breaking Strength Is Not the Same as Launching Force
One of the most important distinctions in UAV launcher design is the difference between breaking strength and operating force.
Breaking Strength
Breaking strength represents the destructive load at which the cord ultimately fails during testing.
Operating Force
Operating force is the tensile force generated by the elastic cord at a defined working extension.
For UAV catapult systems, operating force and the force-extension curve are usually more useful for configuration analysis than a single breaking-load value.
A bungee cord may have a high breaking strength but still be unsuitable for a particular launcher if its elastic force develops too slowly, too quickly or outside the available extension distance.
Force-Extension Testing
| 12 meters | 170kgs |
| 16meters | 500kgs |
What This Case Study Demonstrates
Three Important Findings from the Project
1. Real Application Validation
The elastic cord was tested as part of an operating fixed-wing UAV catapult system rather than being evaluated only through laboratory tensile testing.
2. System-Based Cord Selection
The test confirms the importance of evaluating aircraft requirements and launcher geometry together when selecting an elastic component.
3. Custom Configuration Matters
Different UAV launchers can require different combinations of cord diameter, length, elastic core construction, working extension and connection method.
This is why a successful configuration should be treated as an engineering reference rather than a universal specification.
Can Every 34mm Bungee Cord Launch a 75kg - 80kg UAV?
No — UAV Weight Alone Does Not Define the Required Cord
This case documents one successful launcher configuration. The 34mm version offered by MFU is a specially customized product.
It does not mean that every 34mm bungee cord is automatically suitable for every 75kg – 80kg UAV.
Launcher performance can change significantly according to:
- bungee cord construction
- number of cords
- original cord length
- pre-tension
- maximum extension
- force-extension characteristics
- pulley ratio
- acceleration distance
- launcher inclination
- carriage weight
- system friction
- aerodynamic requirements
- target launch velocity
The correct elastic system should therefore be selected according to the actual UAV and launcher configuration.
What Information Is Needed for a UAV Launcher Project?
For a new UAV catapult project, the following information helps evaluate the required elastic configuration:
| Required Parameter | Information |
| UAV Takeoff Weight | kg |
| Required Launch Velocity | m/s |
| Launch Rail Length | m |
| Launcher Inclination | ° |
| Available Bungee Length | m |
| Available Bungee Quantity | pcs |
| Maximum Stretched Length | m |
| Pulley Ratio | If applicable |
| Carriage Weight | kg |
| Required Launch Cycles | cycles |
| Working Temperature | °C |
FAQ
Can a 34mm bungee cord be used for a UAV catapult launcher?
Yes. This case documents the successful use of a 34mm elastic cord in a fixed-wing UAV catapult launch system. Final suitability depends on the aircraft requirements and the complete launcher configuration.
How do you choose a bungee cord for a UAV launcher?
Selection should consider UAV weight, required launch velocity, available acceleration distance, bungee length, working extension, number of cords and launcher geometry. Measured force-extension data provides a more reliable engineering reference than diameter alone.
Is UAV weight enough to determine bungee cord diameter?
No. Aircraft weight is only one variable. Two UAVs with the same mass may require different elastic systems because of differences in required launch velocity, acceleration distance, launcher design and aerodynamic characteristics.
What material is used in this 34mm UAV bungee cord?
The cord uses a polyester braided outer jacket with an imported latex elastic core, combining external protection with elastic energy storage and recovery.
Is breaking strength the same as UAV launch force?
No. Breaking strength is the destructive failure load of the cord. Launch force is the tensile force generated at a specific working extension. These values should not be treated as interchangeable.
Why is a force-extension curve important?
A force-extension curve shows how tensile force changes as the cord is stretched. This helps engineers evaluate the usable working range of the cord and compare it with the requirements of the launcher.
Can the 34mm bungee cord length be customized?
Yes. Cord length can be produced according to the available elastic travel and launcher layout.
Can the end connections be customized?
Yes. Depending on the launcher design, options can include reinforced soft loops, protective sleeves, metal rings and other customized terminations.
Can MFU develop a cord based on our existing UAV launcher?
Yes. Providing UAV weight, required launch speed, launcher dimensions, elastic travel and drawings allows the elastic configuration to be evaluated against the project requirements.
